Receiver/Drier Installation Note

  1. Tighten the bolt of joint by hand.
  2. Tighten the joint to the specified torque.
  3. Connect the block joint type pipe by grasping the female side of the block with hand holding firmly, then tighten the connection bolt.

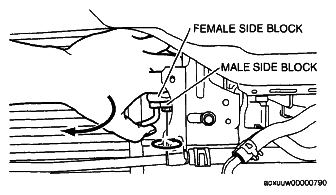

    Fig 1: Grasping Female Side
    G04860635Courtesy of MAZDA MOTORS CORP.
