Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
    CAUTION:
    • Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

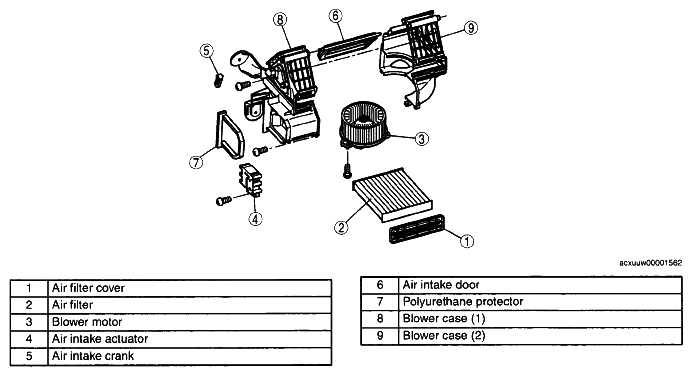

      Fig 1: Identifying Blower Unit Components
      G04860622Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
