A/C Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

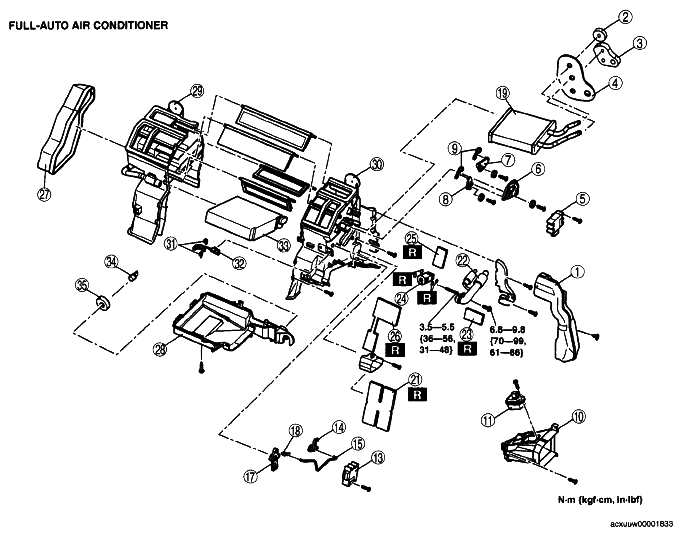

    Fig 1: Exploded View Of Full-Auto Air Conditioner With Torque Specifications
    G04860609Courtesy of MAZDA MOTORS CORP.

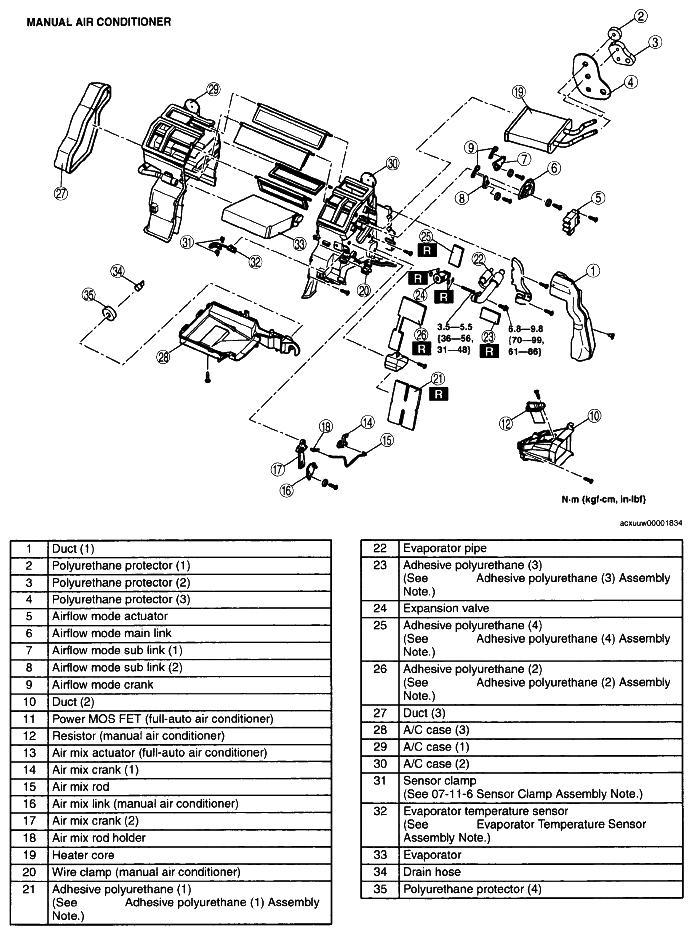

    Fig 2: Exploded View Of Manual Air Conditioner With Torque Specifications
    G04860610Courtesy of MAZDA MOTORS CORP.
