Evaporator Temperature Sensor Assembly Note

  1. Assemble the evaporator temperature sensor as shown in the figure.

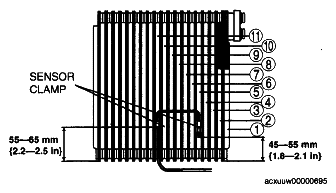

    Fig 1: Assembling Evaporator Temperature Sensor With Specifications
    G04860612Courtesy of MAZDA MOTORS CORP.
