Adhesive polyurethane (3) Assembly Note

  1. Attach the adhesive polyurethane (3) so that it adheres around the low-pressure side of the evaporator pipe.

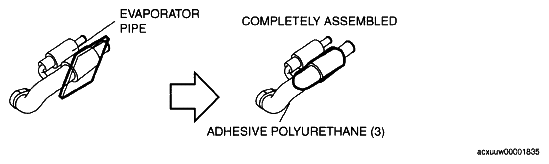

    Fig 1: Attaching Adhesive Polyurethane (3)
    G04860616Courtesy of MAZDA MOTORS CORP.
