Adhesive polyurethane (2) Assembly Note

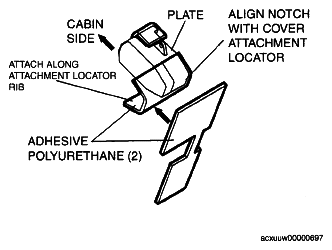

  1. Attach the adhesive polyurethane (2) as shown in the figure.
    Fig 1: Assembling Adhesive Polyurethane (2)
    G04860613Courtesy of MAZDA MOTORS CORP.

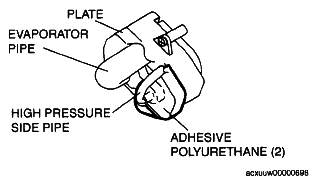

  2. After assembling the evaporator pipe as shown in the figure, attach the adhesive polyurethane (2) so that it adheres around the high-pressure side of the evaporator pipe.
    Fig 2: Assembling Evaporator Pipe
    G04860614Courtesy of MAZDA MOTORS CORP.
