Adhesive polyurethane (1) Assembly Note

  1. Attach the adhesive polyurethane (1) as shown in the figure.

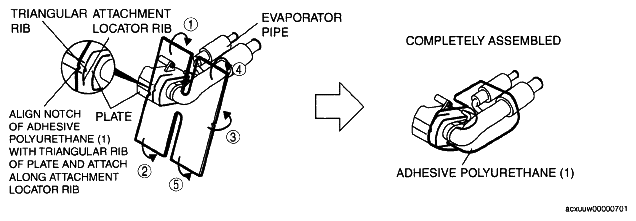

    Fig 1: Attaching Adhesive Polyurethane
    G04860617Courtesy of MAZDA MOTORS CORP.
