Lubrication System Location Index

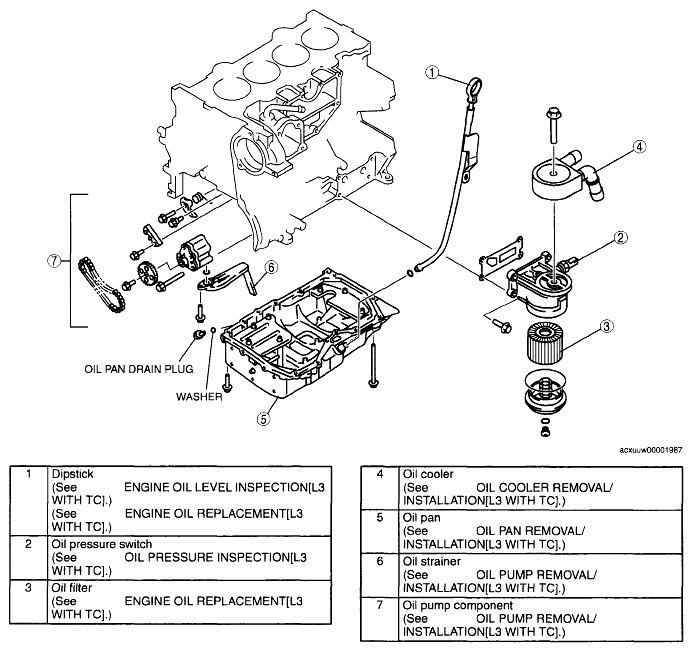

Fig 1: Identifying Lubrication System Components Location [L3 With TC]

G04859551

Courtesy of MAZDA MOTORS CORP.
