Engine Oil Level Inspection

  1. Position the vehicle on level ground.
  2. Warm up the engine.
  3. Stop the engine and allow approx. 5 min  before continuing.
  4. Rotate the service hole cap (installed to charge air cooler duct) used to remove/install the dipstick in the direction shown in the figure and remove it.

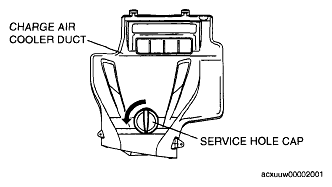

    Fig 1: Rotating Service Hole Cap
    G04859554Courtesy of MAZDA MOTORS CORP.
  5. Remove the dipstick and verify that the oil level is between the MIN and MAX marks on the dipstick.
    • If the oil level is below the MIN mark, add engine oil.

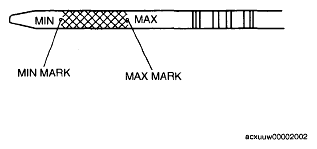

      Fig 2: Identifying MIN And MAX Marks On Oil Level Dipstick
      G04859555Courtesy of MAZDA MOTORS CORP.
  6. Install the service hole cap by rotating it in the direction shown in the figure.

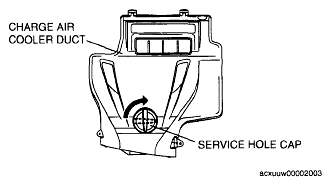

    Fig 3: Rotating Service Hole Cap For Installing
    G04859556Courtesy of MAZDA MOTORS CORP.
