Exhaust Manifold Installation Note

  1. Tighten the exhaust manifold installation nuts in the order shown.

    Tightening torque

    43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}

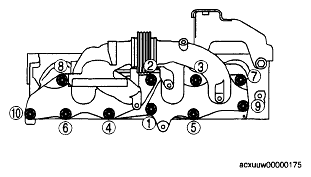

    Fig 1: Identifying Tightening Sequence Of Exhaust Manifold Nuts
    G04859685Courtesy of MAZDA MOTORS CORP.
