Radiator Removal/Installation: RH

  1. Remove the upper mount rubber bracket while pressing down the upper mount rubber bracket tab in the direction of the arrow.

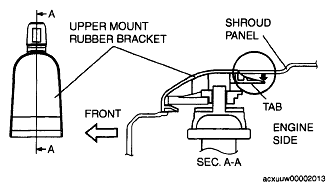

    Fig 1: Locating Upper Mount Rubber Bracket Tab
    G04859585Courtesy of MAZDA MOTORS CORP.
