Radiator Removal/Installation: LH

  1. Insert a flathead screwdriver into the upper mount rubber bracket notch.

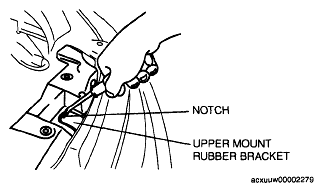

    Fig 1: Inserting Flathead Screwdriver Into Upper Mount Rubber Bracket Notch
    G04859586Courtesy of MAZDA MOTORS CORP.
  2. Apply force in the direction shown by the arrow.
    Fig 2: Applying Downward Force
    G04859587Courtesy of MAZDA MOTORS CORP.
