Cooling System Location Index

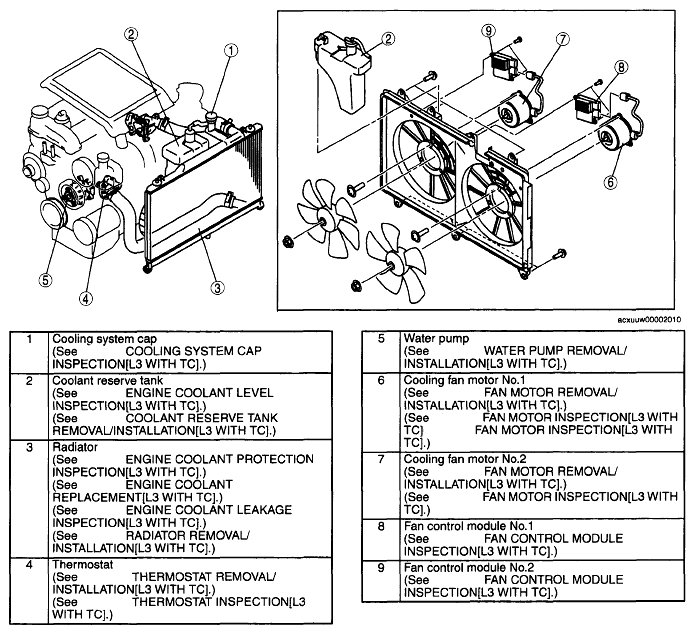

Fig 1: Identifying Cooling System Components [L3 With TC]

G04859573

Courtesy of MAZDA MOTORS CORP.
