Coolant Reserve Tank Removal/Installation: Notes

  1. Remove the charge air cooler duct. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

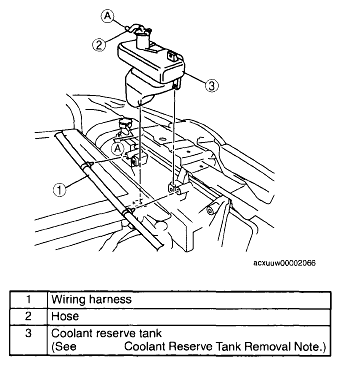

    Fig 1: Identifying Coolant Reserve Tank Components [L3 With TC]
    G04859582Courtesy of MAZDA MOTORS CORP.
