Rear Wiper And Washer Switch Terminals Connector End View

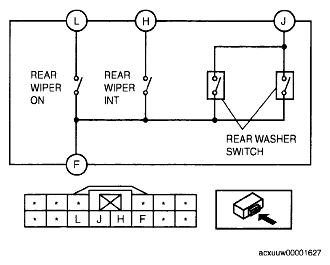

Fig 1: Rear Wiper And Washer Switch Terminals Connector End View
G04861377Courtesy of MAZDA MOTORS CORP.
