Keyless Entry System Connector End View

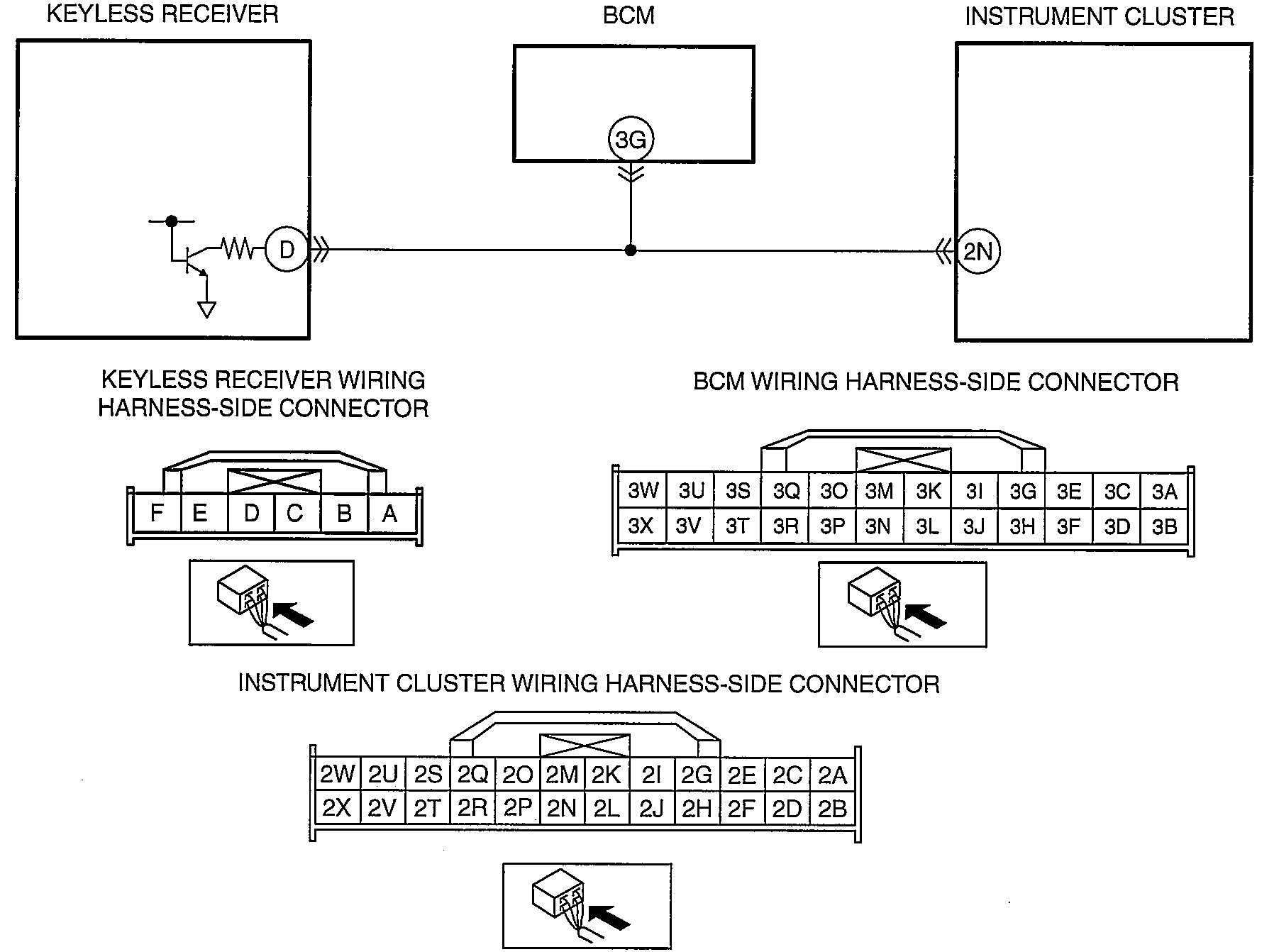

Fig 1: Keyless Entry System Connector End View

G00485822

Courtesy of MAZDA MOTORS CORP.
