A/F Sensor Heater Control Connector End View

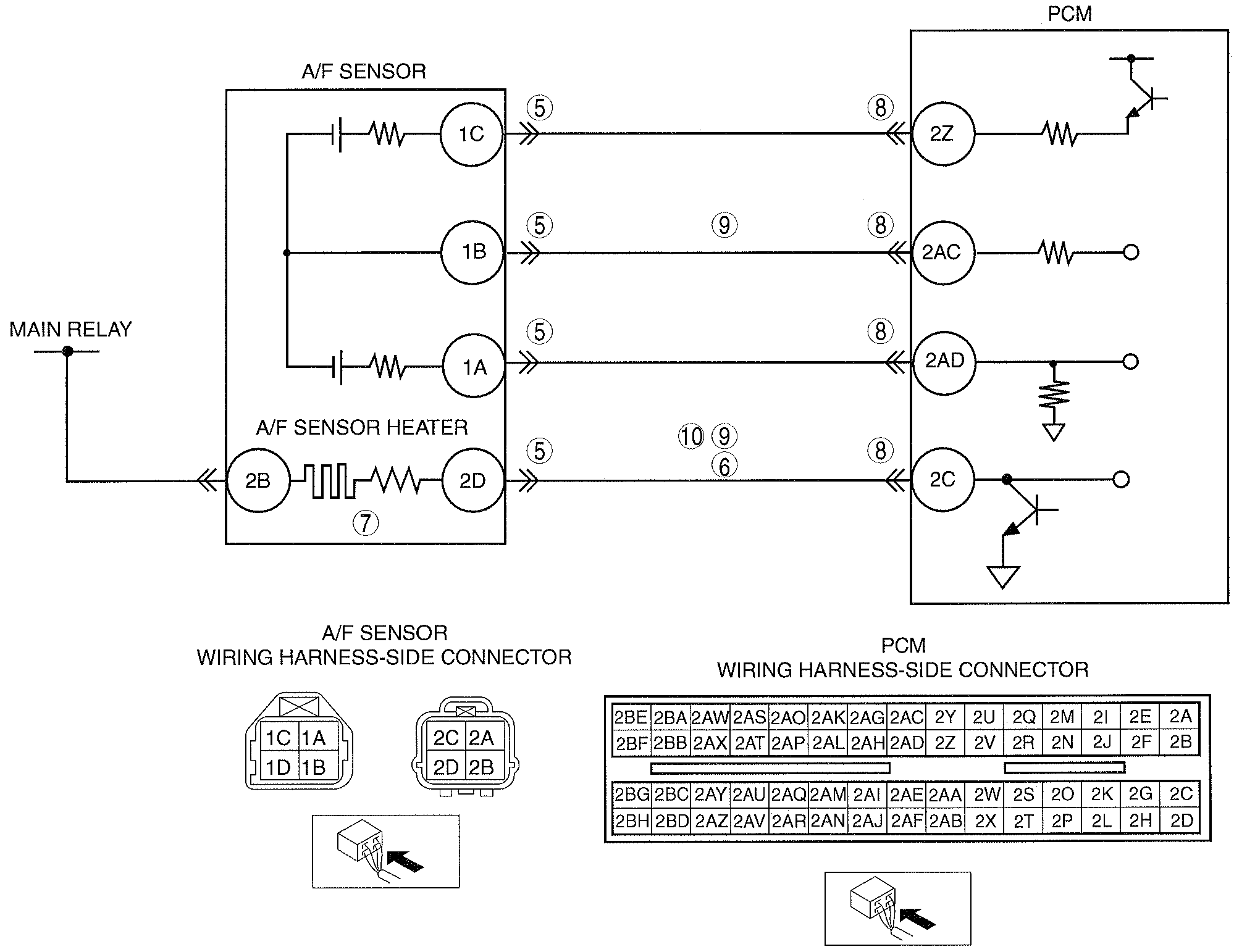

Fig 1: A/F Sensor Heater Control Connector End View

G00487902

Courtesy of MAZDA MOTORS CORP.
