Passenger's Side

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  4. Disconnect the power window subswitch connector.
  5. Remove the screws, then the power window subswitch.
  6. Install in the reverse order of removal.

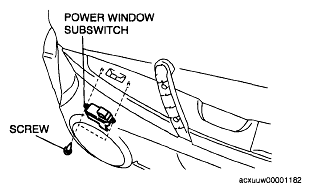

    Fig 1: Identifying Power Window Subswitch
    G04861014Courtesy of MAZDA MOTORS CORP.
