Home >> Mazda >> 2007 >> CX-7 Touring, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Location Index

Location Index

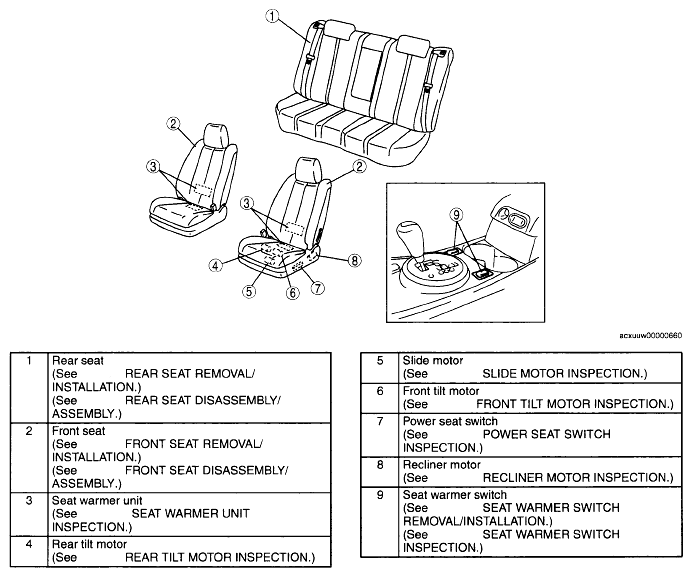

Fig 1: Identifying Seat Components

G04861080

Courtesy of MAZDA MOTORS CORP.
