SUNVISOR Removal/Installation

  1. Remove the screw, then the sunvisor.

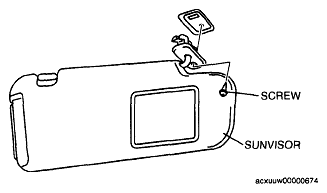

    Fig 1: Identifying Sunvisor And Screw
    G04861280Courtesy of MAZDA MOTORS CORP.
  2. Disengage the center adapter (sunvisor stopper) from the body using a fastener remover.
  3. Install in the reverse order of removal.

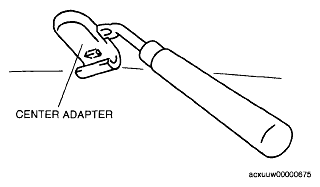

    Fig 2: Identifying Center Adapter
    G04861281Courtesy of MAZDA MOTORS CORP.
