Dashboard Disassembly/Assembly

  1. Remove the following parts:
    1. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
    2. Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION ).
    3. Front speaker (See FRONT SPEAKER REMOVAL/INSTALLATION ).
    4. Center speaker (See CENTER SPEAKER REMOVAL/INSTALLATION ).
  2. Disassemble in the order indicated in the figure.
  3. Assemble in the reverse order of disassembly.

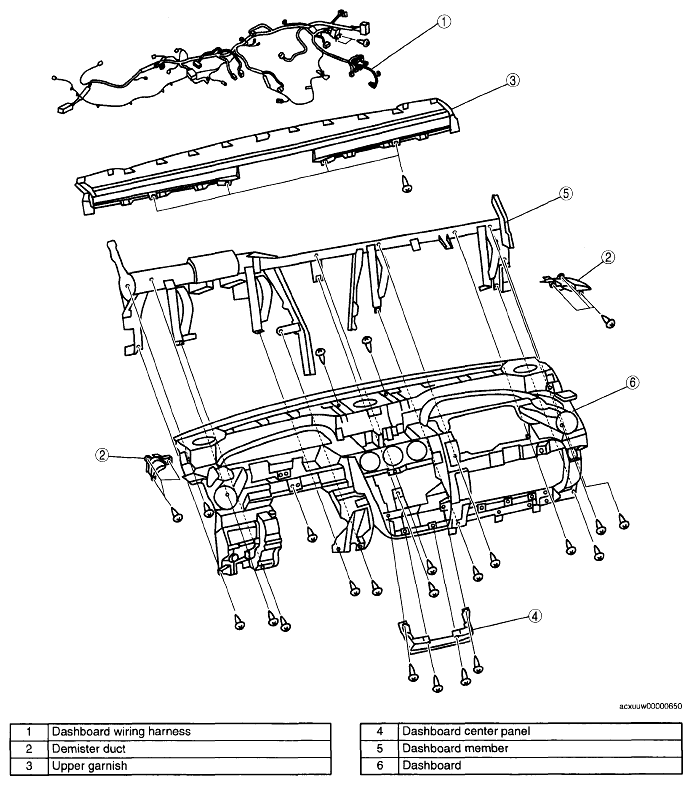

    Fig 1: Disassembling View Of Dashboard
    G04861229Courtesy of MAZDA MOTORS CORP.
