Console Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.

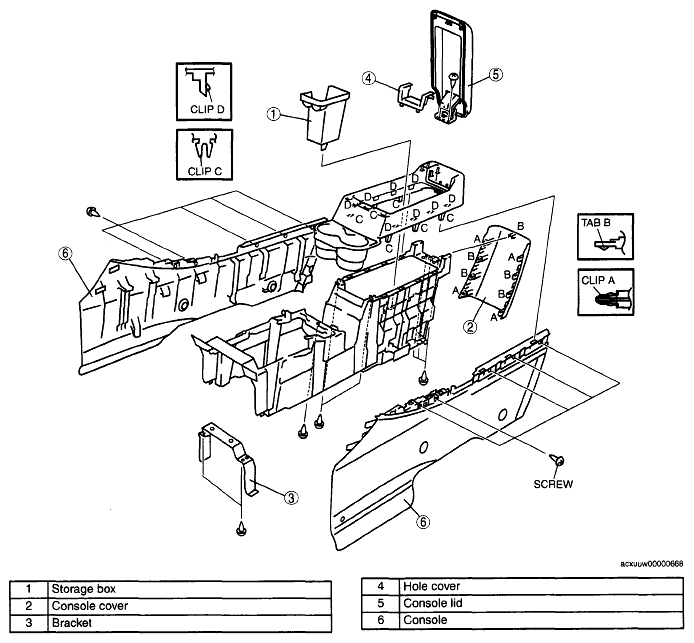

    Fig 1: Disassembling View Of Console
    G04861244Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
