Assist Handle Removal/Installation

  1. Insert a screwdriver into the assist handle notch and remove the assist handle cover.

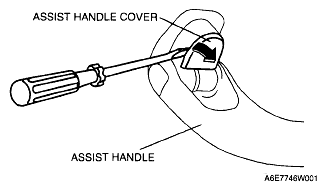

    Fig 1: Assist Handle Cover
    G04861282Courtesy of MAZDA MOTORS CORP.
  2. Pull the assist handle outward, then remove the assist handle.
  3. Install in the reverse order of removal.
    Fig 2: Identifying Assist Handle
    G04861283Courtesy of MAZDA MOTORS CORP.
