Security And Locks Location Index

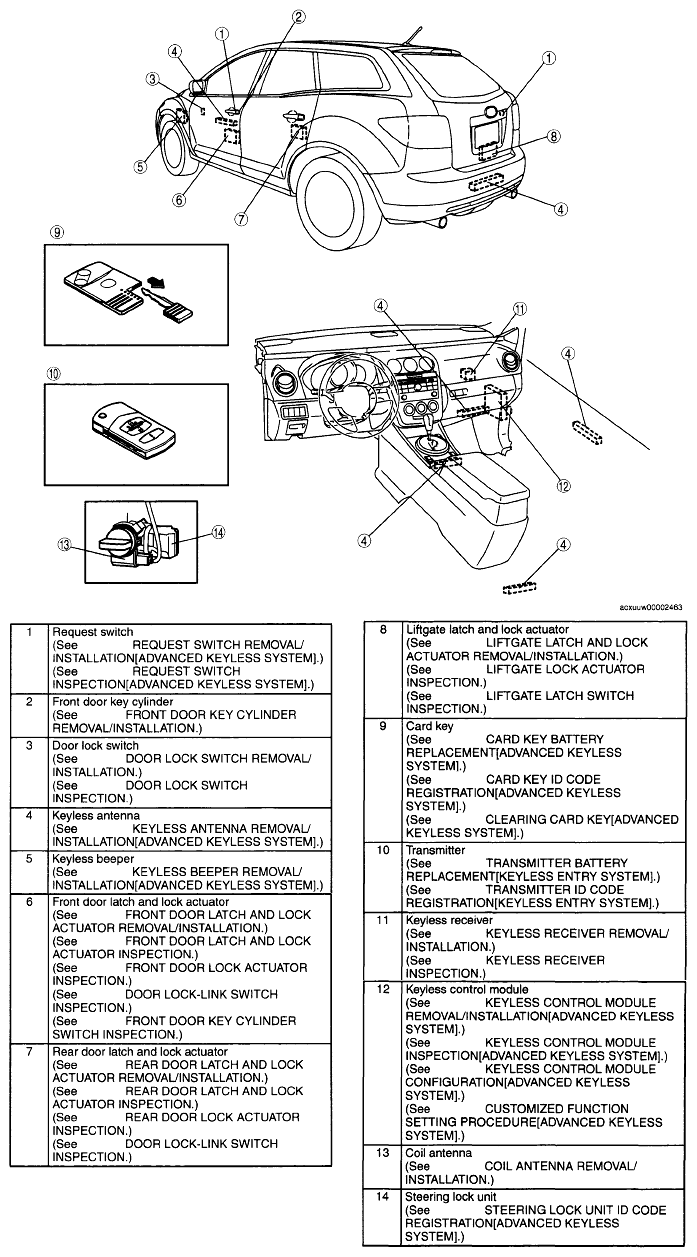

Fig 1: Identifying Security And Locks Components

G04861104

Courtesy of MAZDA MOTORS CORP.
