Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

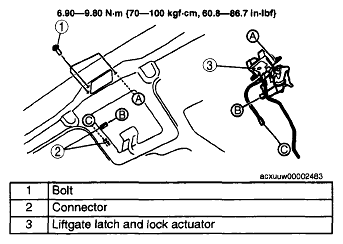

    Fig 1: Liftgate Latch And Lock Actuator Fasteners With Torque Specifications
    G04861124Courtesy of MAZDA MOTORS CORP.
