Microphone Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Remove in the order in the illustration.
  5. Install in the reverse order of removal.

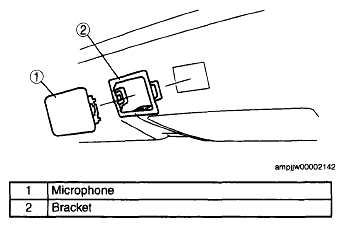

    Fig 1: Identifying Microphone And Bracket
    G04861426Courtesy of MAZDA MOTORS CORP.
