Car-Navigation Unit Removal/Installation

NOTE:
  • Car-navigation unit is located under the front seat (passenger's side).
  1. Disconnect the negative battery cable.
  2. Remove the seat belt anchor, (passenger's side) (See FRONT SEAT BELT REMOVAL/INSTALLATION ).
  3. Remove the front seat, (passenger's side) (See FRONT SEAT REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

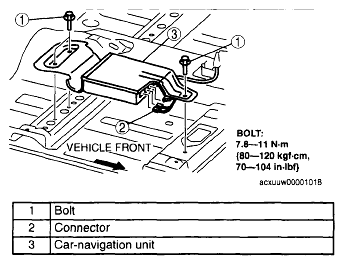

    Fig 1: Removing Order Of Car-Navigation Unit Components With Torque Specifications
    G04861395Courtesy of MAZDA MOTORS CORP.
