Audio Unit Removal Note

  1. Detach clip A using a flathead screwdriver.
  2. Pull the Audio unit outward, detach clip B from the dashboard, and then remove the Audio unit.

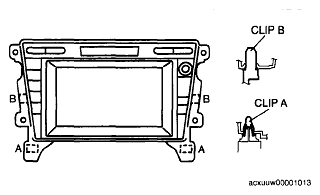

    Fig 1: Identifying Audio Unit Clip
    G04861393Courtesy of MAZDA MOTORS CORP.
