Accessory Socket Removal Note

  1. While pressing a tape-wrapped flathead screwdriver against the cap projection, pull the accessory socket outward.

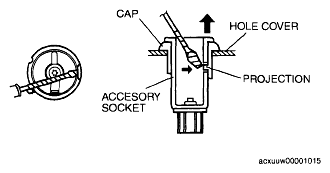

    Fig 1: Identifying Accessory Socket
    G04861429Courtesy of MAZDA MOTORS CORP.
