Map Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a scraper into the gap between the headliner and the map light.
  3. Press the tab and remove the map light.

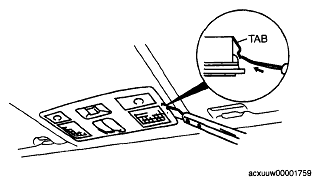

    Fig 1: Pressing Tab And Map Light
    G04861338Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the socket, then remove the map light bulb.
  6. Install in the reverse order of removal.

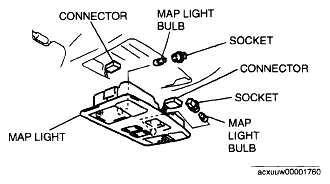

    Fig 2: Identifying Map Light Bulb, Connector And Socket
    G04861339Courtesy of MAZDA MOTORS CORP.
