Map Light Inspection

  1. Verify that the continuity between the map light terminals is as indicated in the table.
    • If not as indicated in the table, replace the map light.

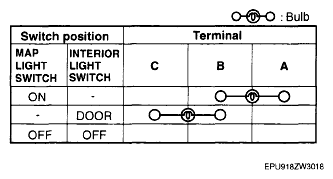

      Fig 1: Map Light Continuity Reference Chart
      G04861340Courtesy of MAZDA MOTORS CORP.
      Fig 2: Identifying Map Light Switch (LH) And Interior Light Switch (RR) Test Terminals
      G04861341Courtesy of MAZDA MOTORS CORP.
