Lighting Systems Location Index

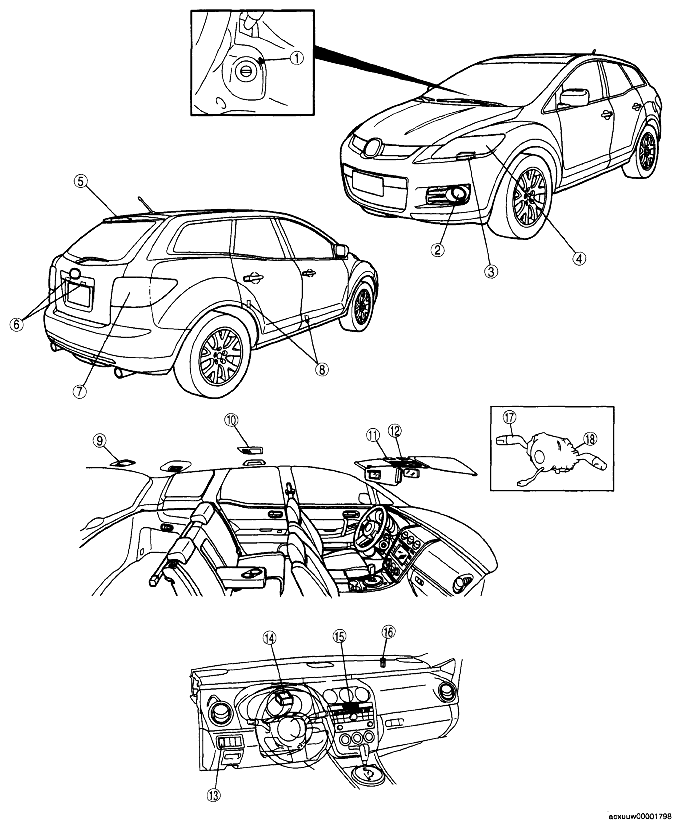

Fig 1: Identifying Lighting Systems Components

G04861288

Courtesy of MAZDA MOTORS CORP.

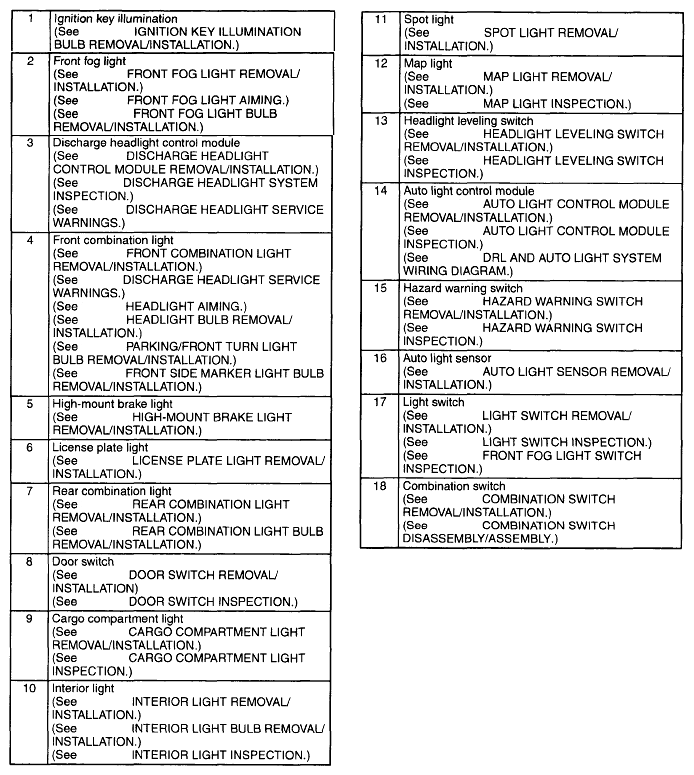

Fig 2: Lighting Systems Components Chart

G04861289

Courtesy of MAZDA MOTORS CORP.
