Headlight Leveling Switch Inspection

  1. Verify that continuity between the headlight leveling switch terminals is as indicated in the table.

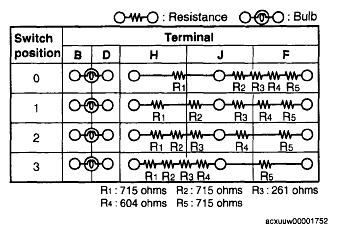

    Fig 1: Headlight Leveling Switch Resistance Reference Chart
    G04861329Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the headlight leveling switch.
      Fig 2: Identifying Headlight Leveling Switch Connector Terminals
      G04861330Courtesy of MAZDA MOTORS CORP.
