Front Fog Light Aiming

  1. Make a front fog light adjustment screen as shown in the figure using double-weight, white paper.

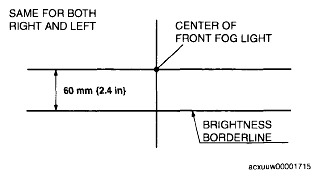

    Fig 1: Identifying Front Fog Light Adjustment Screen
    G04861303Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolt and cut the plastic piece off at the position shaded shown in the figure.
  3. Adjust the tire pressure to the specification.
  4. Position the unloaded vehicle on a flat, level surface.
  5. Seat one person in the driver's seat.

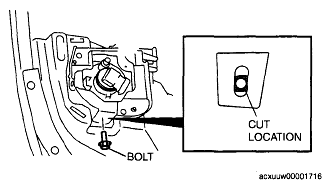

    Fig 2: Cutting Location Of Bolt
    G04861304Courtesy of MAZDA MOTORS CORP.
  6. Line up the headlights with the white screen at a distance of 3 m {9.8 ft}  apart.
  7. Place an object in front of the fog light not being adjusted to block its light beam.
  8. Start the engine so that the battery remains charged.
  9. Turn the front fog lights on.

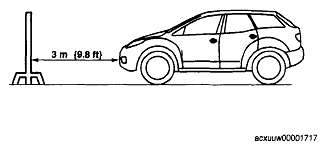

    Fig 3: Identifying Distance Of Headlight And White Screen
    G04861305Courtesy of MAZDA MOTORS CORP.
  10. Loosen the screw, move the front fog light in the direction of the arrows, and adjust the center of the front fog light to the position shown in the figure.
  11. Install the bolt and tighten the screw.

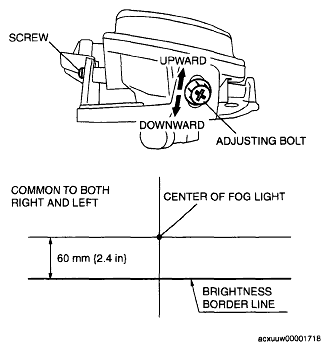

    Fig 4: Identifying Adjusting Bolt And Screw
    G04861306Courtesy of MAZDA MOTORS CORP.
