Auto Light Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the dashboard under cover (RH).
  3. Push out the auto light sensor with connector from under the instrument panel
  4. Remove in the order indicated in the table.

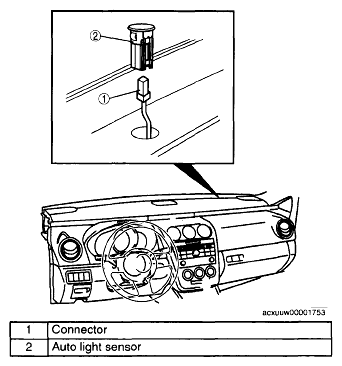

    Fig 1: Identifying Auto Light Sensor And Connector
    G04861333Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
