Rear Mount Camera Removal/Installation

  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
  2. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
  3. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

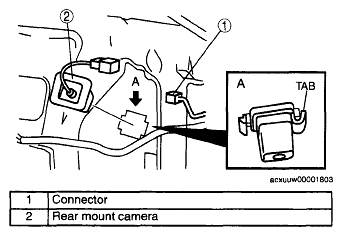

    Fig 1: Identifying Connector And Rear Mount Camera
    G04861427Courtesy of MAZDA MOTORS CORP.
