Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

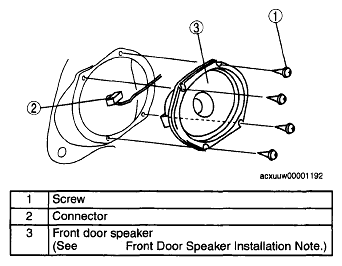

    Fig 1: Identifying Removing Order Of Front Door Speaker Components
    G04861398Courtesy of MAZDA MOTORS CORP.
