Guide Assembly Note

  1. Move the pin to the position shown in the figure.

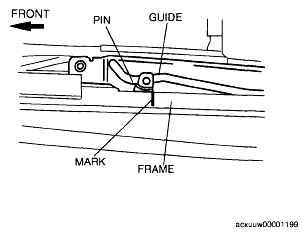

    Fig 1: Moving Pin To Position
    G04861188Courtesy of MAZDA MOTORS CORP.
