Headlight Leveling Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

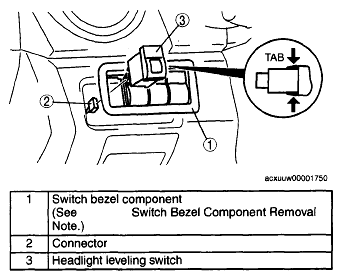

    Fig 1: Identifying Headlight Leveling Switch, Switch Bezel Component And Connector
    G04861328Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
