Control System Device And Control Relationship Chart

X: Applied

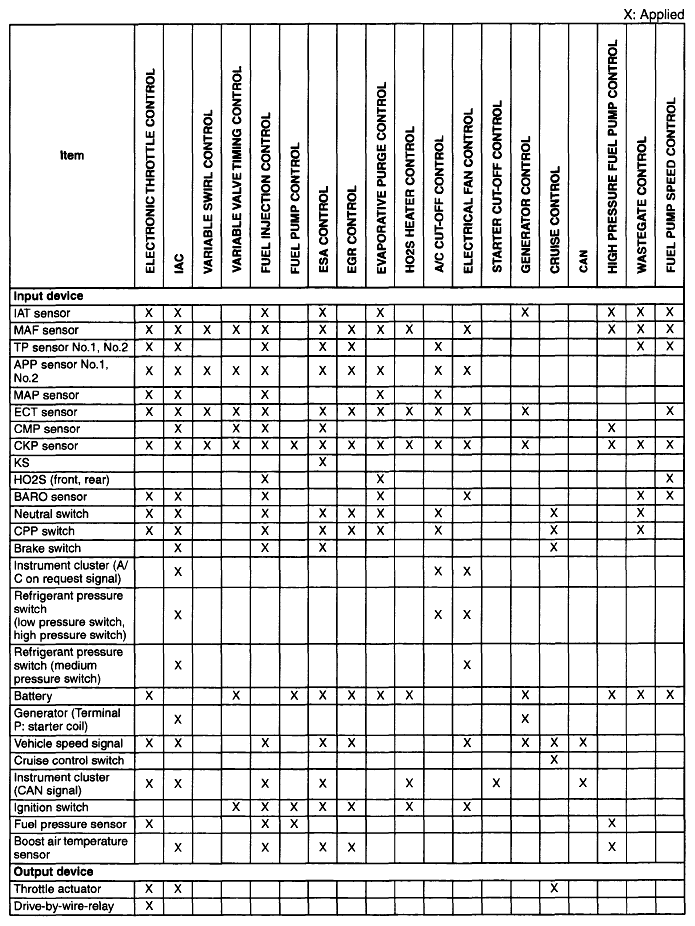

Fig 1: Control System Device And Control Relationship Chart [L3 With TC] (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

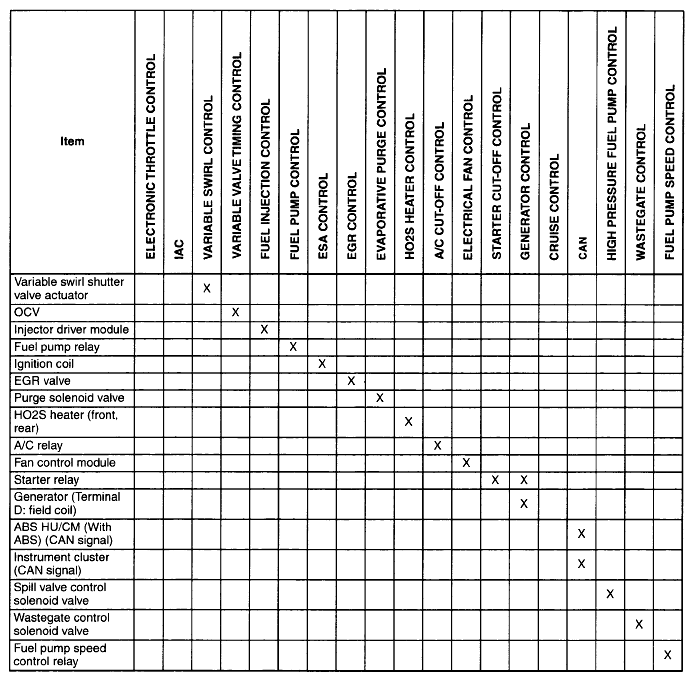

Fig 2: Control System Device And Control Relationship Chart [L3 With TC] (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
