Exhaust System Removal/Installation: Notes

WARNING:
  • A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove the charge air cooler duct.
  3. Remove the charge air cooler cover. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  4. Remove the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

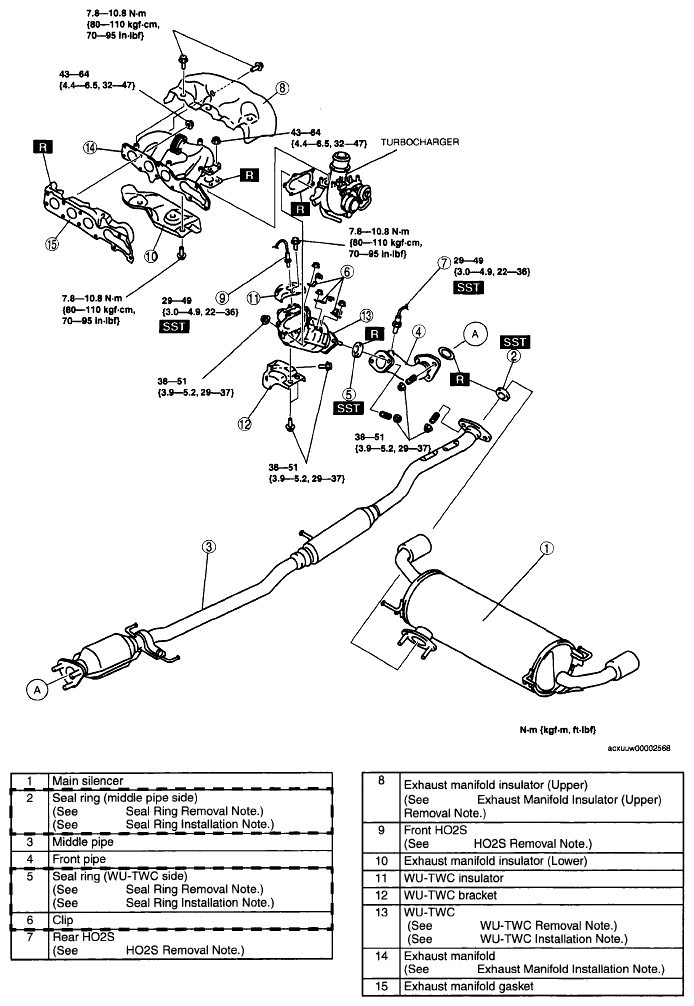

    Fig 1: Exhaust System Replacement Components With Torque Specifications [L3 With TC]
    G04859682Courtesy of MAZDA MOTORS CORP.
