Generator Removal/Installation[L3 With TC]: Notes

WARNING:

• Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
• When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

CAUTION:

• The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.

1. Disconnect the negative battery cable.
2. Remove the charge air cooler duct and charge air cooler cover. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC] ).
3. Remove the front splash shield (RH).
4. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[L3 WITH TC] ).
5. Remove in the order indicated in the illustration.
6. Install in the reverse order of removal.

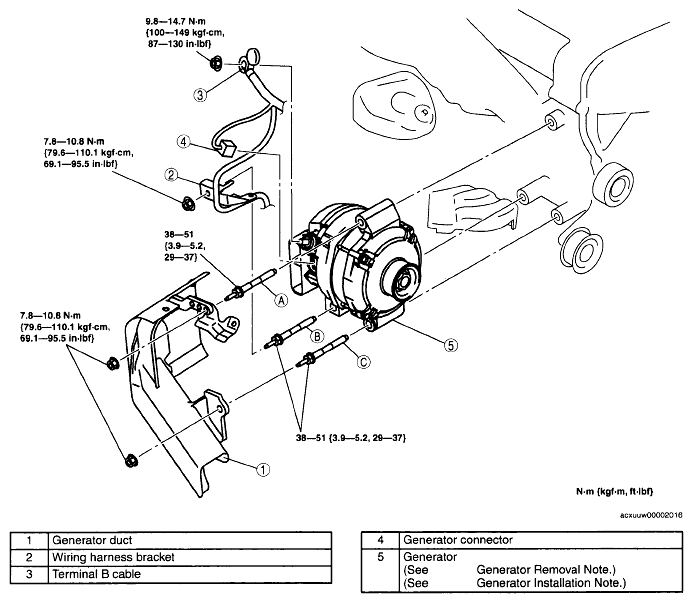

Fig 1: Generator Component Removal Order With Torque Specification [L3 With TC]

Courtesy of MAZDA MOTORS CORP.
