Generator Disassembly/Assembly[L3 With TC]

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

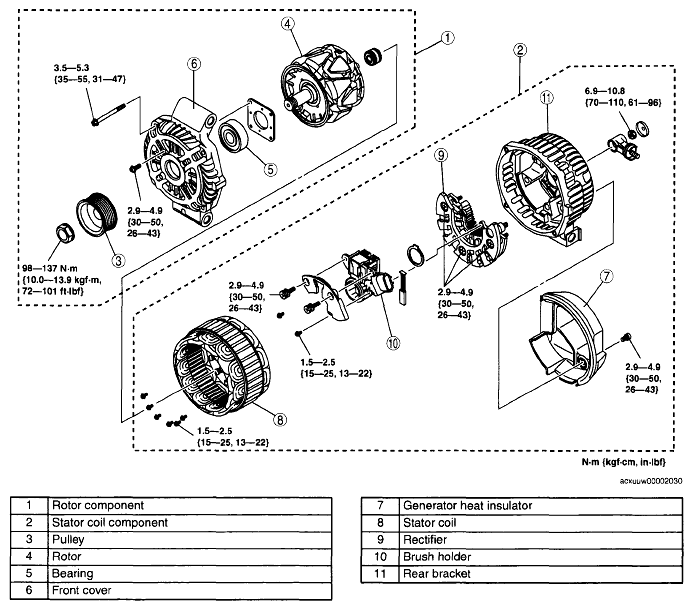

    Fig 1: Exploded View Of Generator With Torque Specification
    G04859742Courtesy of MAZDA MOTORS CORP.
