Home >> Mazda >> 2007 >> CX-7 Sport, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery Removal/Installation[L3 With TC] >> Notes

Battery Removal/Installation[L3 With TC]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

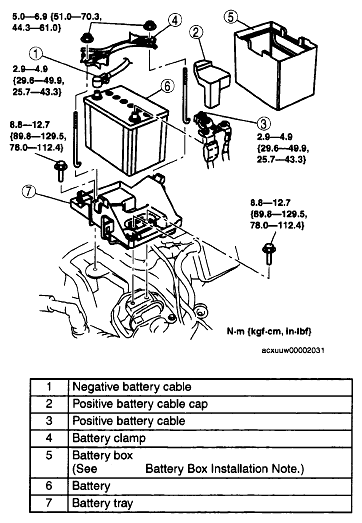

    Fig 1: Battery Replacement Components [L3 With TC] With Torque Specifications
    G04859724Courtesy of MAZDA MOTORS CORP.
