Power Window Main Switch

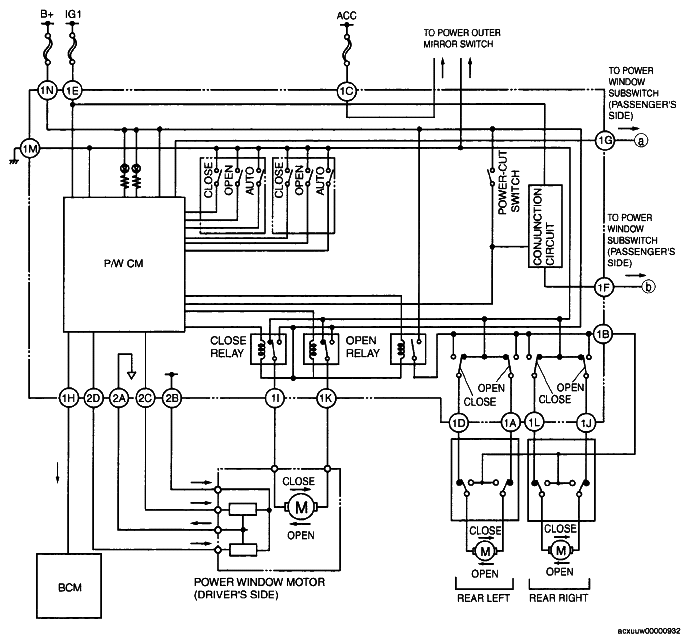

Fig 1: Power Window Main Switch Wiring Diagram

G04860932

Courtesy of MAZDA MOTORS CORP.
