Rear Window Glass Installation

WARNING:
  • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
CAUTION:
  • If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the door glass open until the rear window glass installation is completed.
  1. Remove the sealant along the perimeter of the glass using a razor or scraper, (when reusing the glass)
  2. Clean and degrease an approx. 50 mm {1.97 in}  wide strip along the perimeter of the glass.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Install the spacers and pin to the glass as shown in the figure.

    When reusing the glass, align with the alignment mark marked before removing.

  5. Apply glass primer on the glass as shown in the figure then allow it to dry for approx. 30 min.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
      Fig 1: Identifying Pin And Spacer
      G04861036Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

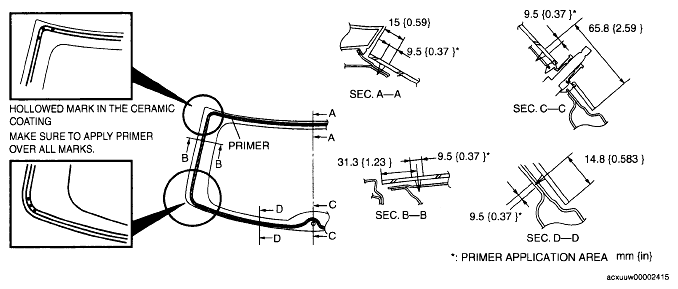

      Fig 2: Identifying Primer Applying Points With Specifications
      G04861037Courtesy of MAZDA MOTORS CORP.
  6. Cut away the old sealant using a razor or scraper so that 1-2 mm {0.04-0.07 in}  thickness of sealant remains along the perimeter of the frame.
  7. Clean and degrease the bonding area along the perimeter of the body.
  8. When reusing the liftgate, apply primer to the area where the sealant has come off completely and allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
  9. Apply body primer on the body as shown in the figure, then allow it to dry for 30 min.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

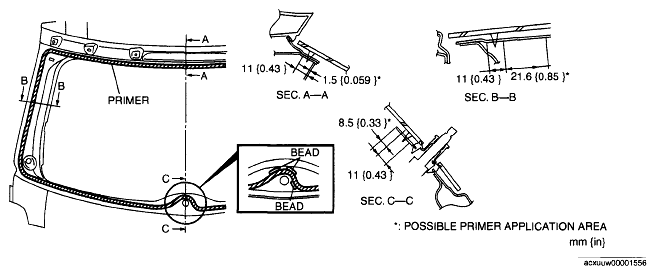

      Fig 3: Identifying Primer Applying Points With Specifications
      G04861038Courtesy of MAZDA MOTORS CORP.
  10. Apply sealant to the area of the glass surface as shown in the figure.
  11. Install the rear window glass.
  12. Verify that the gap at the upper and lower parts of the glass is within the standard value shown in the figure, then press along the perimeter of the glass.
    Fig 4: Identifying Sealant Applying Points With Specifications
    G04861039Courtesy of MAZDA MOTORS CORP.
    Fig 5: Identifying Sealant Applying Points With Specifications
    G04861040Courtesy of MAZDA MOTORS CORP.
  13. Connect the filament connector.
  14. Install the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION ).
  15. Install the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION ).
  16. Install the rear wiper motor. (See REAR WIPER MOTOR REMOVAL/INSTALLATION ).
  17. Install the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  18. Install the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
  19. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
  20. Install the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
  21. Allow the sealant to harden completely.

    Sealant hardening time: 24 h
