Rear Side

  1. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  2. When inspecting the rear, turn the power-cut switch UNLOCK.
  3. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.

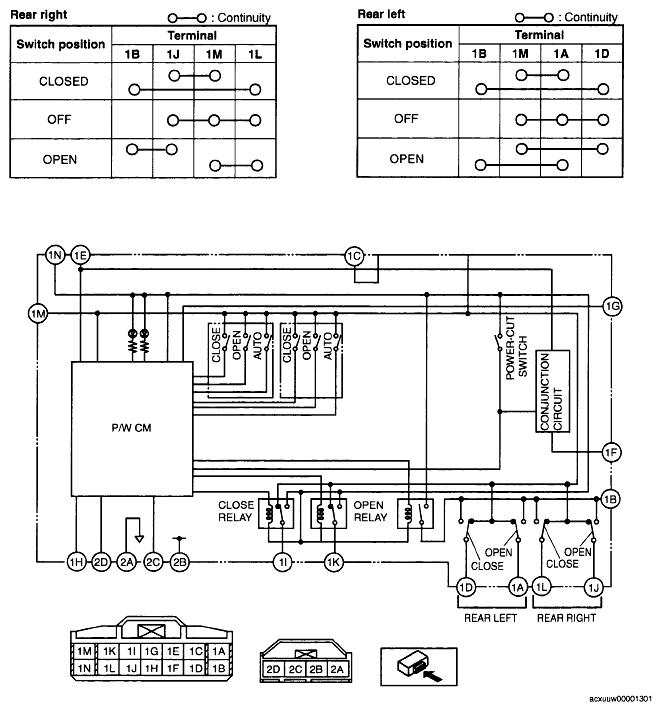

      Fig 1: Power Window Main Switch Circuit Diagram And Continuity Tables
      G04861013Courtesy of MAZDA MOTORS CORP.
