Recliner Motor Inspection

  1. Disconnect the recliner motor connector.
  2. Apply battery positive voltage to the recliner motor terminals and inspect the recliner motor operation.
    • If not as specified, replace the slide adjuster.
      RECLINER MOTOR INSPECTION REFERENCE

      Motor operation Connection
      B+ GND
      Forward B A
      Backward A B

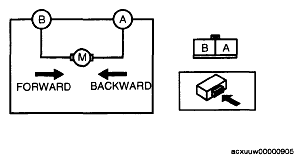

      Fig 1: Inspecting Recliner Motor
      G04861093Courtesy of MAZDA MOTORS CORP.
