Front Tilt Motor Inspection

  1. Disconnect the front tilt motor connector.
  2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation
    • If not as specified, replace the slide adjuster.
      FRONT TILT MOTOR INSPECTION REFERENCE

      Motor operation Connection
      B+ GND
      Up A B
      Down B A

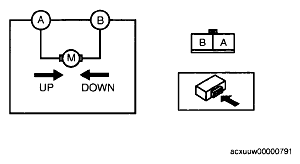

      Fig 1: Inspecting Front Tilt Motor
      G04861090Courtesy of MAZDA MOTORS CORP.
