Removal & Installation

WARNING: This page is about a different car, the 2002 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, See AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . SAS control module is located under center of dash panel. See Figure. Pull back carpeting to access SAS control module. Disconnect SAS control module connectors. Remove 3 SAS control module mounting nuts. Remove SAS control module from vehicle. See Fig 1.
  2. To install, reverse removal procedure. Position SAS control module arrow toward front of vehicle. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . After SAS control module is installed, activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .

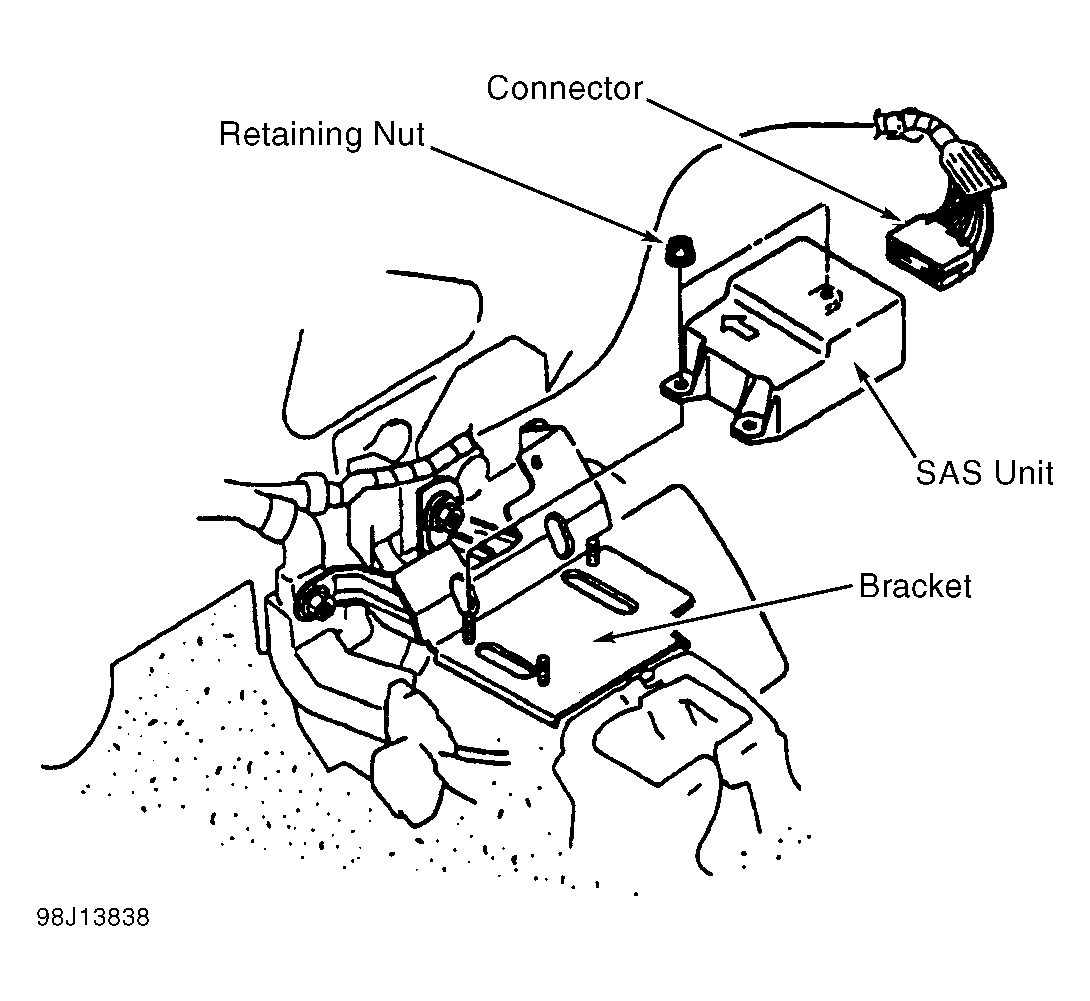

Fig 1: Removing SAS Control Module
G98J13838Courtesy of MAZDA MOTORS CORP.
